Color Coating Line

Parameters:

Strip  Thickness：    0.15—1.2mm

Strip      Width：    800—1250mm ,300—700mm

Working    Speed：    25—100m/min

Drying    Method：    heated air circulation

Product Standard：    GB/T 12754-2006

Process Flow

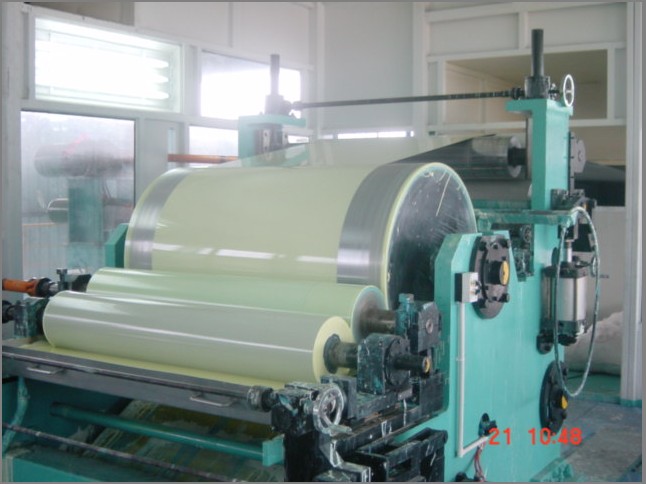

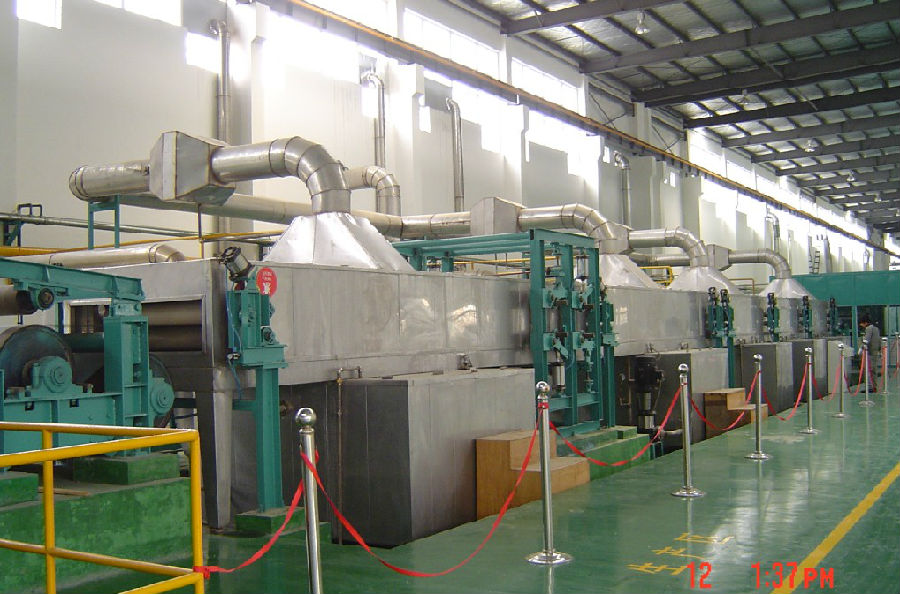

Pay-off Reel---Pinch Roll---Shear---Jointing Machine---Tension Roll ---Entry Looper---Tension Roll---Chemical Rinsing System---Hot Air Blowpipe ---Passivation Coater----Drying Oven---Tension Roll---Steering Machine ---Primer Coater---Primer Oven---Cooling Device---Steering Machine ---Finish Coater---Finish Oven---Cooling Device---Steering Machine---Tension Roll ---Exit Looper---Tension Roll---Shear---Pinch Roll---Recoiling Machine
